article number
216267

Brodit Hub Mount - for holders with USB-host function

Price €110.95
Out of stock
-
+
  • Fast Shipping
  • High Quality Products
  • Secure Payments
Details
Hub mount for holders with USB-Host function. Hub with three USB-A ports with USB-Host function and one Ethernet port. This mount with the Hub included is the perfect choice for you when you want three USB-A ports with USB-Host function and one Ethernet port connected to your holder with only one USB-Host. Only connect the cable to the USB-A port on the active holder.   This mount fits the following holders: Samsung tablets with Host function.
More Information
More Information
Accessory brand Brodit
Barcode 7320282162672
Recommended retail price incl. VAT €110.95
Device with or without case without skin
Module Upgrade Cradle system (MUC) MUC Module
Holder feature Toestelspecifiek, MUC add on
Holder extras usbA host, module add on
Cable / Qi / charger type / connnector usbC only
Input Voltage 5V USB
Voltage (output) 5V
Max Amperage not applicable
Montage standaard AMPS
Device holder lockable? no
Color black
Item Returns This item can be returned
Show more + Show less -
Compatibility
Show more + Show less -
Instruction

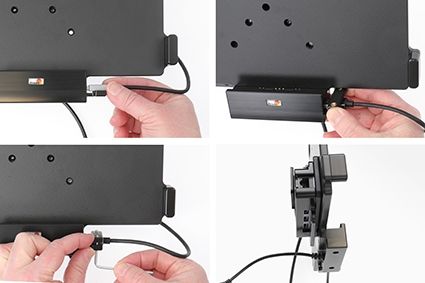

Read all of the instructions and look at the pictures before installing. Please note: The Hub mount can be placed on either side of the holder.   1. Loosen the screws to demount the tilt swivel. Turn the holder upside down, place the mount over the holder so that the screws fit into the hole. The mount can be mounted on the other side, by loosening the screws and turning the plate. Place the mount over the holes and fasten it with the enclosed screws.

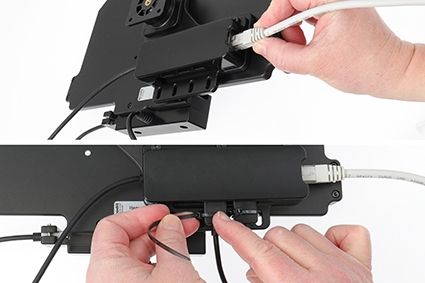

2. To attach the cable: Attach the cable to the device. Place the lid over the cable and screw it into place with the enclosed screws.
3. Attach the cables: Connect the cable in the Hub.
4. The mount is in place.
